Press Advantages

Heavy, four-piece tie rod or unitized frame supplies a solid base to resist deflection and provide accurate stampings and longer die life.

Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.

Standard Features

  • Wet clutch and brake
  • Flywheel brake
  • Hydraulic overload system
  • Air counterbalance system
  • Automatic lubrication system
  • Digital die height indicator
  • T-slotted slide plate and bolster
  • Motorized slide adjustment
  • OmniLink 5100-APC press controls

Optional Features

  • Link motion drive technology
  • Press controls from Wintriss, Link, Helm (Allen-Bradley), Toledo (Allen-Bradley), Siemens, Mitsubishi, etc.
  • Anti-vibration press leveling mounts
  • Safety light curtains
  • Tonnage monitor
  • Quick die-change system
  • Die cushion
  • Knockout bar
  • Compact servo feed line

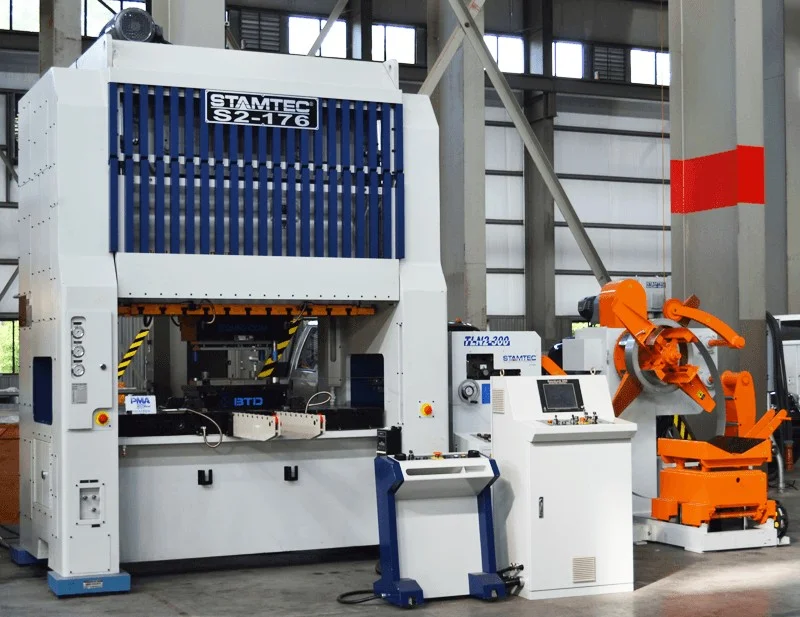

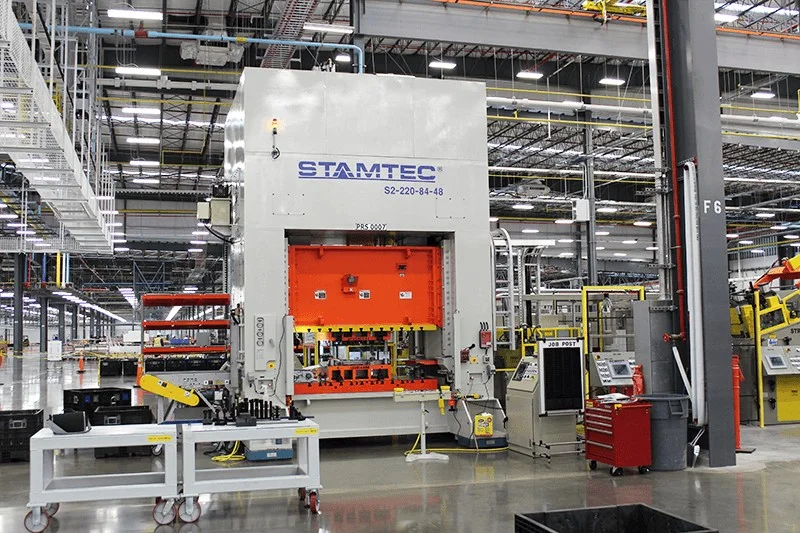

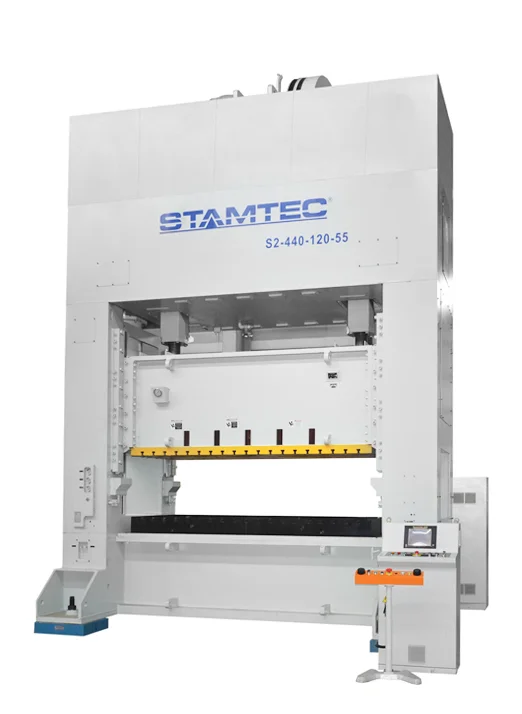

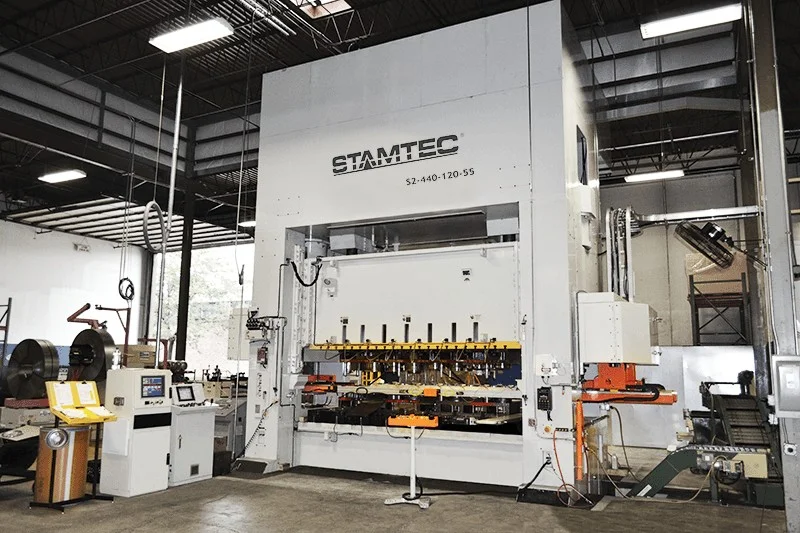

S2 Series 2-Point Straight Side Press

SKU N/A Categories , Tag
SUBMIT INQUIRY
CATALOG

Equipment Description

Description

The Stamtec S2 two-point straight side press (a.k.a. double crank press) is designed for stamping large parts or ones that require a large bed area to accommodate progressive or transfer dies. Oftentimes, these types of operations require high tonnage, high flywheel energy, maximum frame or bed rigidity, or some combination thereof. The path of the slide is guided by eight full-length, ninety-degree gibs with nickel-bronze wear plates, offering maximum control, a high degree of accuracy, and ease of adjustment.

TONNAGE RANGE: 110 – 3300
Delivery Time: some models in stock or with quick delivery



Review the specs, advantages, and features of our S2 double crank press below, and then contact us for more information.

Stamtec mechanical presses can be customized to meet a wider range of SPM, stroke, rating point (BDC), bed, and other specifications and dimensions.
